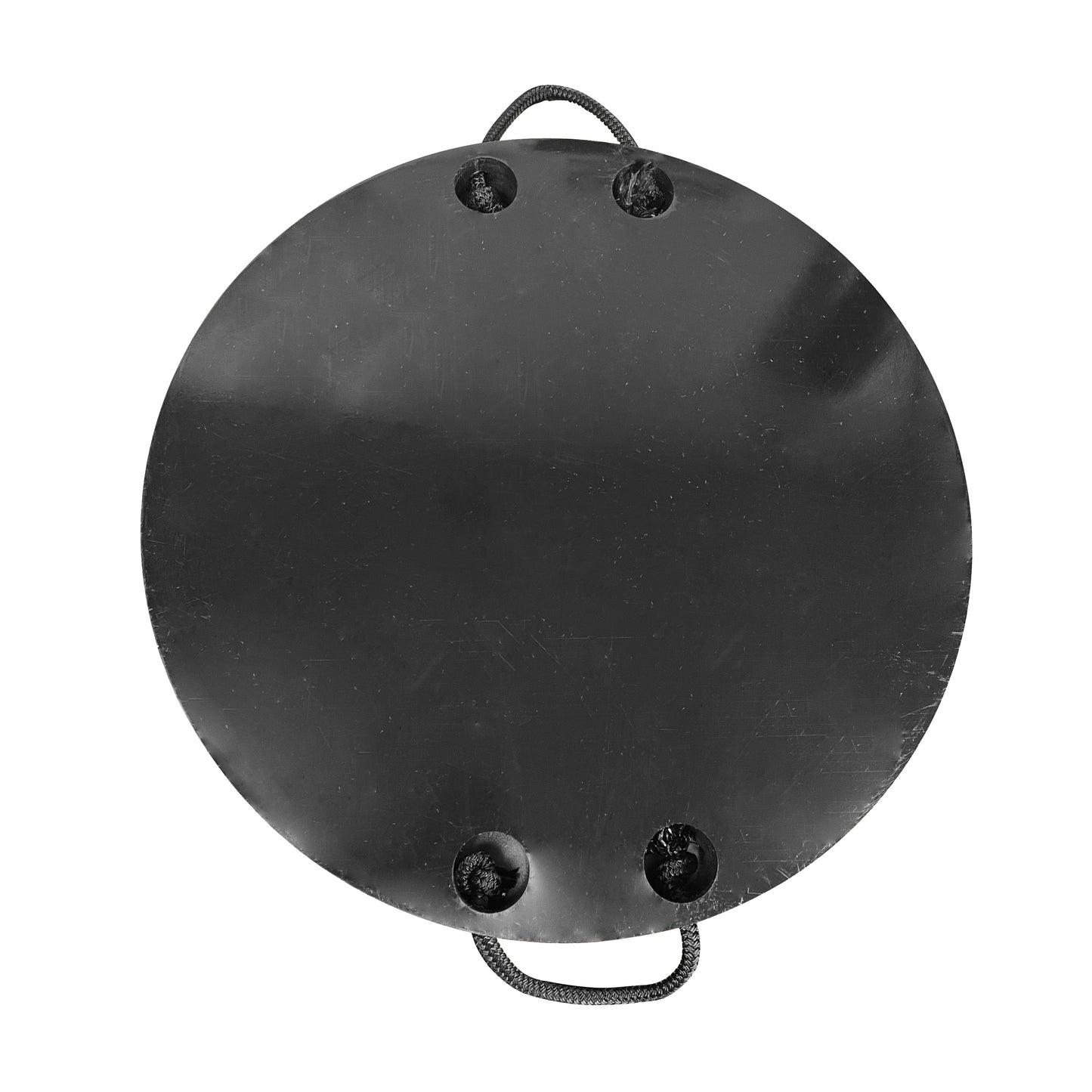

Outrigger Pad (ROUND)

High Density Polyethylene with handles.

Weight Capacity per thickness and size: *Weights listed are approximate. Better to go over than under.

1" X 12" Diameter  @ 30,000 LBS

1" X 18" Diameter @ 62,000 LBS

1" X 24" Diameter @ 68,000 LBS

1" X 33" Diameter @ 76,000 LBS

1" X 48" X Diameter @ 83,000 LBS

1.5" X 12" Diameter @ 45,000 LBS

1.5" X 18" Diameter @ 62,000 LBS

1.5" X 24" Diameter @ 65,000 LBS

1.5" X 33" Diameter @ 80,000 LBS

1.5" 48" Diameter @ 95,000 LBS

2" X 24" Diameter @ 83,000 LBS

2" X 33" Diameter @ 115,000 LBS

2" X 48" Diameter @ 150,000 LBS
